From sketch to CNC
in a single platform.
Cloud-native CAD, AISI S240 engineering, BOM generation and CSV NC export — wired directly to your A7 Series rollformer. Each customer gets their own isolated workspace. One platform, infinite factories.
Every tool a steel framer needs.
In one browser tab.

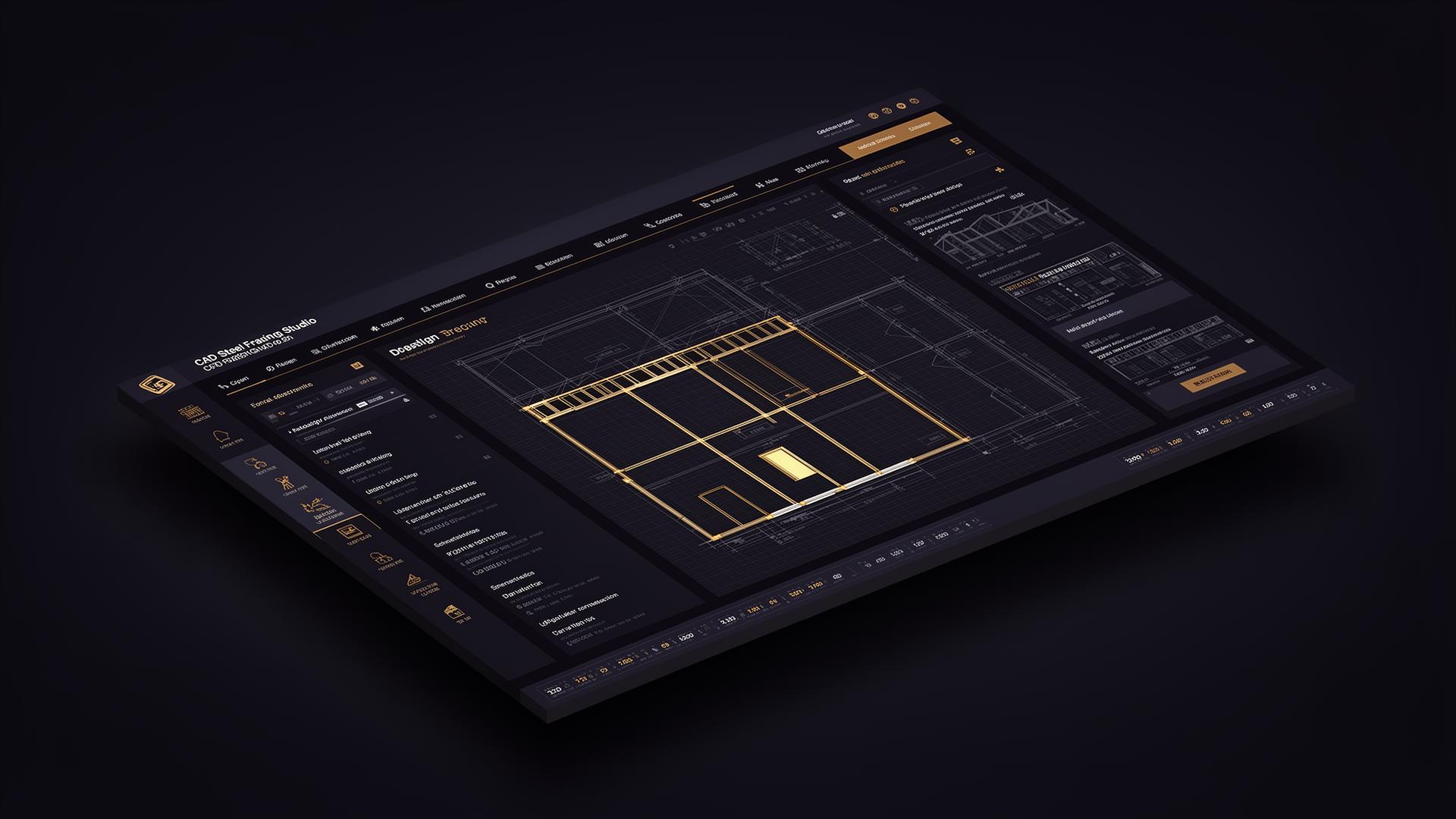

Drawing Canvas
Vector wall layout with snapping, ortho, dimensioned input, multi-angle perimeter (22.5° / 45° / 90°) and live measurement.
Panel Designer
Drag king, jack, cripple, stud, header, composite beam and brace into any panel. Auto-recalculate on demand.
Multi-Floor Manager
Unlimited floors per project. Tab-based switching with per-floor properties, joist direction and load tributary.
Truss Designer
Top chord, bottom chord, web layout. Pratt, Howe, Fink, scissor, parallel chord — all editable.
AISI S240 Engine
Full SSMA 2022 catalog. Stud check (Fa, Mn, deflection), header (Mn, Vn, web crippling), composite section properties.
Wind & Seismic
ASCE 7 wind pressures, seismic base shear, MWFRS distribution, design loads per panel.
BOM Generator
Itemized bill of materials per panel, floor and project. Length optimization, waste %, weight totals.
CSV NC Export
One-click export of CSV NC files compatible with the A7 controller. Vertex BD and Strucsoft MWF importable.
Pedro AI
In-app engineering assistant powered by Lovable AI. Ask about codes, profiles, calculations and best practices.
One workflow.
Zero handoffs.
Trace walls with dimensioned input. Add doors, windows, headers.
Open the panel designer. Add kings, jacks, beams. Live recalc.
Run AISI S240 checks. Wind & seismic per ASCE 7. Pass / fail per member.
Generate the bill of materials. Optimize coil usage and waste.
CSV NC sent straight to the A7 line. Marked, punched, formed, cut.
Every customer.
Their own workspace.
Built for rollformer manufacturers who serve dozens of fabricators from one platform. Each organization gets its own isolated database slice — projects, BOMs, calculations, AI conversations — secured by Postgres Row-Level Security.
- Organization-level data isolation (RLS enforced)
- Per-org user roles and invitations
- Custom branding & subdomain (white-label ready)
- Independent project libraries per tenant
- Audit log of exports and machine submissions
AISI S240, ASCE 7,
SSMA 2022.
Calculations stamp-ready out of the box. Engine ported verbatim from reference standards — locked, audited, and updated as codes evolve.
Plays well with
the tools you already run.
The software that drives
120 tons of steel a week.

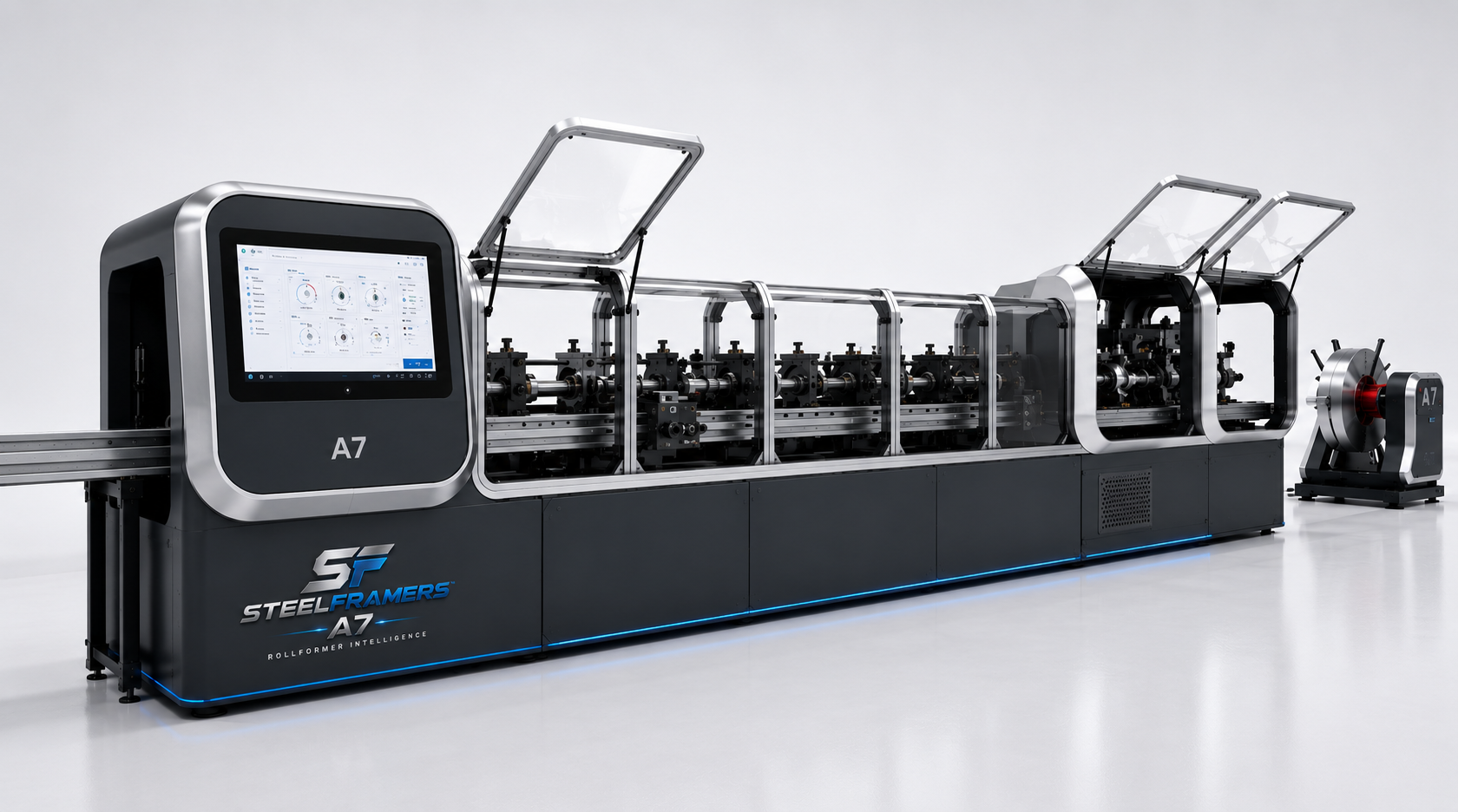

The Studio was engineered alongside the SteelFramers A7 rollformer — 8 profiles, 22–12 Ga, 30 m/min, integrated punching and inkjet marking. Every export speaks the machine's native language.
Scale with your factory.
- Drawing canvas
- Panel designer
- Basic AISI checks
- PDF export
- Unlimited projects & users
- Full S240 + ASCE 7 engine
- BOM + CSV NC export
- Pedro AI assistant
- Custom subdomain & branding
- ERP webhooks & SSO
- Dedicated A7 controller link
- Priority engineering support
